- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com/au/en/
- Brand Name
- AXIS
- Product Series
- M31-VE
- Product Type
- Network Camera

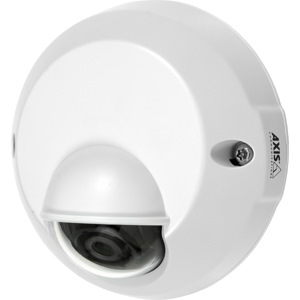

Designed for placement near building entrances to strengthen security, the palm-sized AXIS M3114-VE Network Camera is a cost-effective, ultra-discreet fixed dome for monitoring outdoor entrance areas of stores, restaurants, hotels, banks and offices. The camera is vandal-resistant and can detect tampering attempts such as blocking or spray-painting.
- Warranty
- Limited Warranty
- 1 Year
- Display & Graphics
- Image Sensor Type
- CMOS
- Maximum Illumination
- 100000 lux
- Colour Supported
- Colour
- Video
- Video Formats
- MJPEG
- MPEG-4
- Maximum Video Resolution
- 1280 x 800
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.90 mm
- Lens Mount Type
- S-mount
- Maximum Aperture
- f/2
- Focus Modes
- Fixed Focus
- Exposure
- Shortest Shutter Speed
- 1/24500 Second
- Longest Shutter Speed
- 1/6 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- HTTP
- HTTPS
- SSL/TLS
- QoS
- FTP
- SMTP
- Bonjour
- UPnP
- SNMP
- DNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SOCKS
- DDNS
- Storage
- Flash Memory Capacity
- 128 MB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Weight (Approximate)
- 330 g
- Miscellaneous
- Indoor/Outdoor
- Outdoor
- Package Contents
- M3114-VE Network Camera
- Lens Tool
- Top Cover Tool
- Drill Hole Template
- Mounting Adapter
- Installation Guide
- CD with Installation Tools, Recording Software and User's Manual
- Windows Decoder 1-User License
- 3 m (9.8 ft.) Network Cable With an RJ-45 Connector
- Certifications & Standards
- EN 55022 Class B
- EN 60950-22
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-6-1
- EN 61000-6-2
- EN 55024
- ICES-003 Class B
- FCC Part 15 Subpart B Class B
- VCCI Class B
- C-tick AS/NZS CISPR 22
- EN 60950-1
- IEC 60721-3-4 Class 4K3 (temperature range -20°C to 50°C)
- IEC 60529 IP66/IP67
- NEMA 250 Type 4X
- IEC 62262 Class IK08
- Impact Protection Rating
- IK08
- Ingress Protection Rating
- IP67
- IP66
- Security Features
- Password Protection
- IP Address Filtering
- Digest Authentication
- HTTPS Encryption
- IEEE 802.1X
- User Access Log
